Retracta-Belt Replacement Parts: Spring Case Assembly (213)

Retracta-Belt Replacement Part – Spring Case Assembly (213)

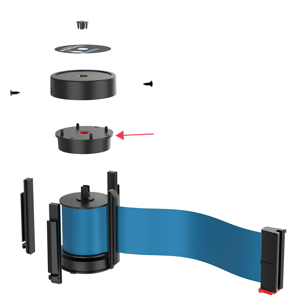

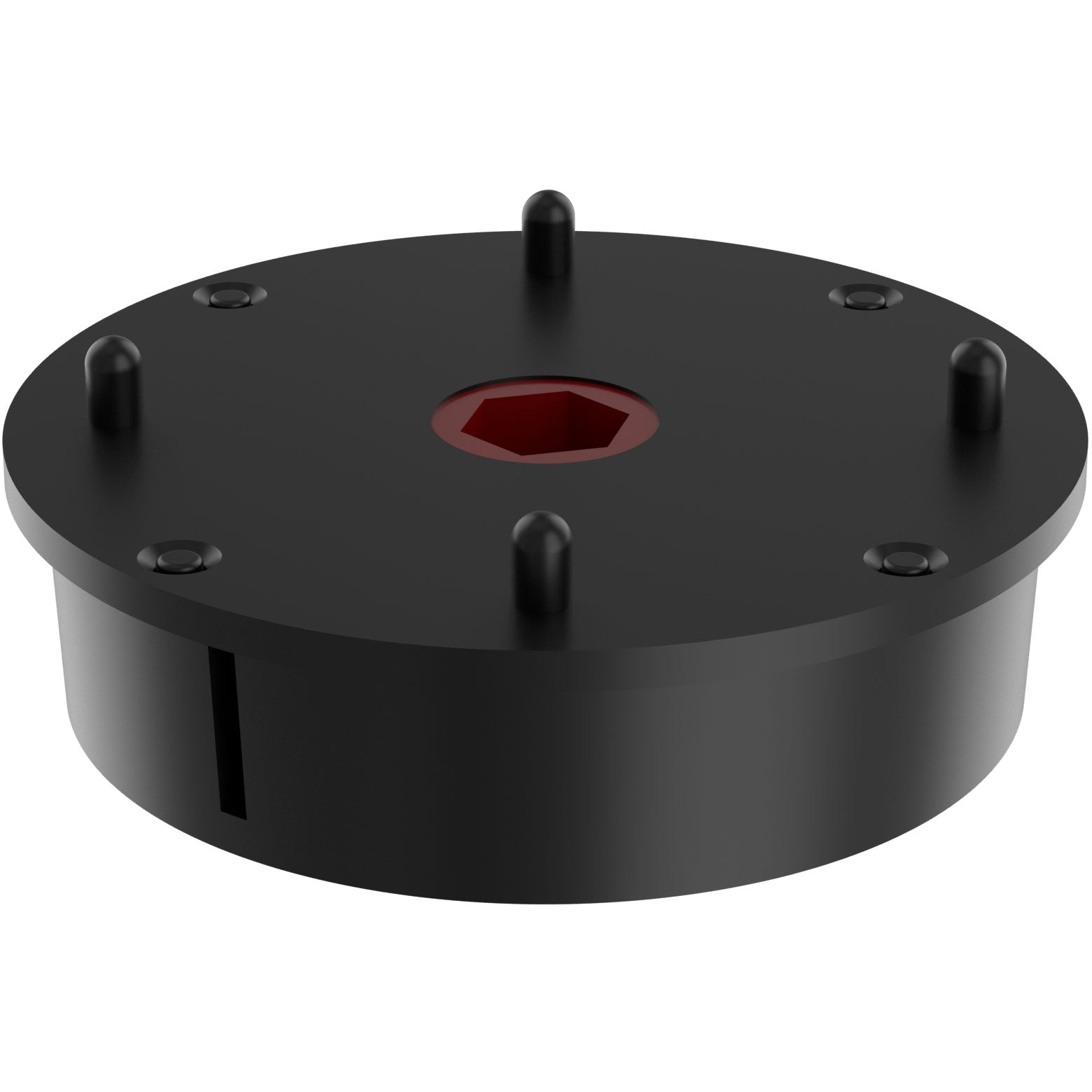

The Spring Case Assembly is the primary internal component that controls the retraction tension of the Visiontron Retracta-Belt stanchion system. This spring-powered mechanism allows the belt to retract smoothly and consistently after extension.

It is a critical part of the cassette system and must be replaced if the belt fails to retract properly or if internal resistance is no longer functioning as expected.

Note: This part must be installed carefully to avoid injury. The internal spring is under tension and may spin upon removal if not handled properly. Refer to the full G3 Assembly Instructions for safe handling.

Specifications

• Part: Spring Case Assembly
• SKU: 213
• Vendor: Visiontron
• Compatibility: Retracta-Belt 300 Series G3 stanchions

Use Case

• Replace if the belt fails to retract, is sluggish, or feels loose
• Used in field maintenance when restoring the full internal cassette mechanism
• Typically installed in conjunction with parts like the spool (#206), belt guide (#208), and post cap (#210P or #210M1)
